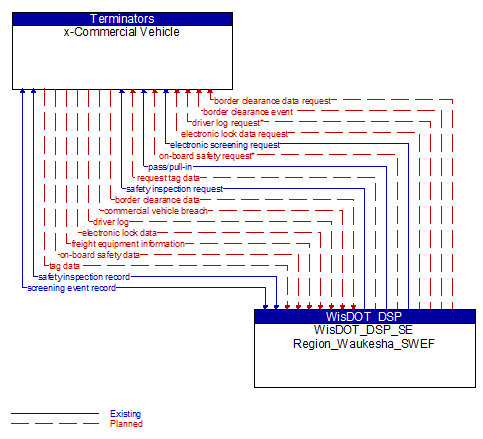

Interface: x-Commercial Vehicle - WisDOT_DSP_SE Region_Waukesha_SWEF
Architecture Flow Definitions
border clearance data (Planned) Applicable ITS Standards
Trip specific data regarding the movement of goods across international borders. Includes trip identification number. May also include results from recent border crossing screening events.
border clearance data request (Planned) Applicable ITS Standards
Request for trip specific data regarding the movement of goods across international borders. Includes trip identification number. May also include results from recent border crossing screening events.
border clearance event (Planned) Applicable ITS Standards
Reports clearance event data regarding action taken at border, including acceptance or override of system decision, and date/time stamp
commercial vehicle breach (Planned)
Information about a breach or tamper event on a Commercial Vehicle or its attached freight equipment which includes identity, type of breach, location, and time.
driver log (Planned) Applicable ITS Standards
A daily log showing hours in service for the current driver. The query flow is not explicitly shown.
driver log request* (Planned)
Request for driver log data. The asterisk (*) indicates that this flow has been discontinued and is no longer included in the National ITS Architecture.
electronic lock data (Planned) Applicable ITS Standards
Notification to roadside (via transponder) of the presence and status of electronic cargo locks.
electronic lock data request (Planned) Applicable ITS Standards
Request from roadside for data regarding presence and status of electronic cargo locks.
electronic screening request (Existing) Applicable ITS Standards
Request for identification data to support electronic screening.
freight equipment information (Planned)
Container, trailer, or chassis information regarding identity, type, location, brake wear data, mileage, seal #, seal type, door open/close status, chassis bare/covered status, tethered / untethered status, Bill of Lading, and sensor status.
on-board safety data (Planned) Applicable ITS Standards
Safety data measured by on-board sensors. Includes information about the vehicle, vehicle components, cargo, and driver. The query flow is not explicitly shown.
on-board safety request* (Planned)
Request for on-board vehicle safety data by the roadside equipment. The asterisk (*) indicates that this flow has been discontinued and is no longer included in the National ITS Architecture.
pass/pull-in (Existing) Applicable ITS Standards
Command to commercial vehicle to pull into or bypass inspection station.
request tag data (Planned) Applicable ITS Standards
Request for tag information including credit identity, stored value card cash, etc.
safety inspection record (Existing) Applicable ITS Standards
Record containing results of commercial vehicle safety inspection.
safety inspection request (Existing) Applicable ITS Standards
Request for safety inspection record.
screening event record (Existing) Applicable ITS Standards
Results of CVO electronic screening activity.
tag data (Planned) Applicable ITS Standards
Unique tag ID and related vehicle information.
