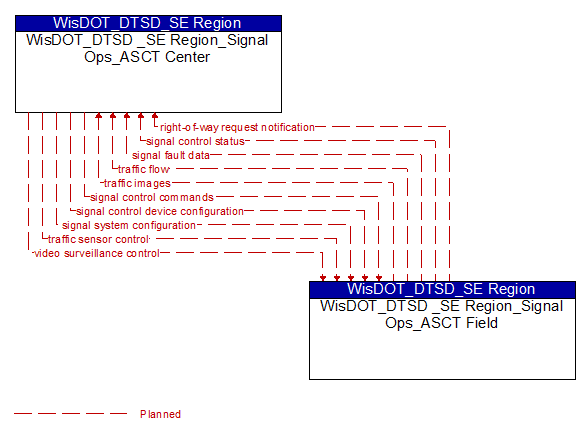

Interface: WisDOT_DTSD _SE Region_Signal Ops_ASCT Center - WisDOT_DTSD _SE Region_Signal Ops_ASCT Field
Architecture Flow Definitions
right-of-way request notification (Planned) Applicable ITS Standards
Notice that a request has occurred for signal prioritization, signal preemption, pedestrian call, multi-modal crossing activation, or other source for right-of-way.
signal control commands (Planned) Applicable ITS Standards
Control of traffic signal controllers or field masters including clock synchronization.
signal control device configuration (Planned) Applicable ITS Standards
Data used to configure traffic signal control equipment including local controllers and system masters.
signal control status (Planned) Applicable ITS Standards
Operational and status data of traffic signal control equipment including operating condition and current indications.
signal fault data (Planned) Applicable ITS Standards
Faults from traffic signal control equipment.
signal system configuration (Planned) Applicable ITS Standards
Data used to configure traffic signal systems including configuring control sections and mode of operation (time based or traffic responsive).
traffic flow (Planned) Applicable ITS Standards
Raw and/or processed traffic detector data which allows derivation of traffic flow variables (e.g., speed, volume, and density measures) and associated information (e.g., congestion, potential incidents). This flow includes the traffic data and the operational status of the traffic detectors.
traffic images (Planned) Applicable ITS Standards
High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications.
traffic sensor control (Planned) Applicable ITS Standards
Information used to configure and control traffic sensor systems.
video surveillance control (Planned) Applicable ITS Standards
Information used to configure and control video surveillance systems.
