Interface: WisDOT_DTSD_BTO_STOC_ATMS - WisDOT_DTSD_BTO_STOC_511 System

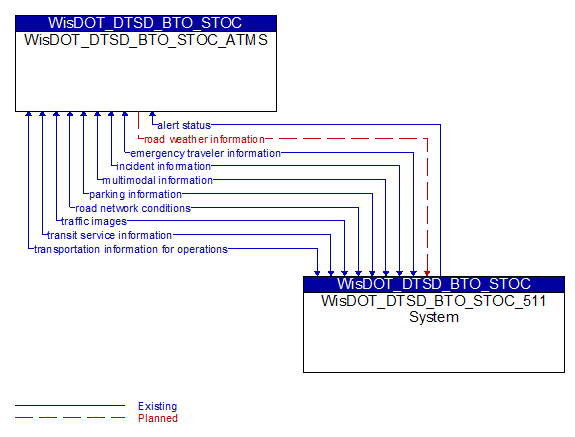

WisDOT_DTSD_BTO_STOC_ATMS to WisDOT_DTSD_BTO_STOC_511 System Interface Diagram

Architecture Flow Definitions

alert status  (Existing)  Applicable ITS Standards

Information indicating the current status of the emergency alert including identification of the traveler and driver information systems that are being used to provide the alert.

emergency traveler information  (Existing)  Applicable ITS Standards

Public notification of an emergency such as a natural or man-made disaster, civil emergency, or child abduction. This flow also includes evacuation information including evacuation instructions, evacuation zones, recommended evacuation times, tailored evacuation routes and destinations, traffic and road conditions along the evacuation routes, traveler services and shelter information, and reentry times and instructions.

incident information  (Existing)  Applicable ITS Standards

Notification of existence of incident and expected severity, location, time and nature of incident. As additional information is gathered and the incident evolves, updated incident information is provided. Incidents include any event that impacts transportation system operation ranging from routine incidents (e.g., disabled vehicle at the side of the road) through large-scale natural or human-caused disasters that involve loss of life, injuries, extensive property damage, and multi-jurisdictional response. This also includes special events, closures, and other planned events that may impact the transportation system.

multimodal information  (Existing)  Applicable ITS Standards

Schedule information for alternate mode transportation providers such as train, ferry, air and bus.

parking information  (Existing)  Applicable ITS Standards

General parking information and status, including current parking availability.

road network conditions  (Existing)  Applicable ITS Standards

Current and forecasted traffic information, road and weather conditions, and other road network status. Either raw data, processed data, or some combination of both may be provided by this architecture flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is included along with a definition of the links, nodes, and routes that make up the road network.

road weather information  (Planned)  Applicable ITS Standards

Road conditions and weather information that are made available by road maintenance operations to other transportation system operators.

traffic images  (Existing)  Applicable ITS Standards

High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications.

transit service information  (Existing)  Applicable ITS Standards

Transit service information including routes, schedules, and fare information as well as dynamic transit schedule adherence and transit vehicle location information.

transportation information for operations  (Existing)  Applicable ITS Standards

Information on the state of transportation system operations including traffic and road conditions, advisories, incidents, transit service information, weather information, parking information, and other related data.
